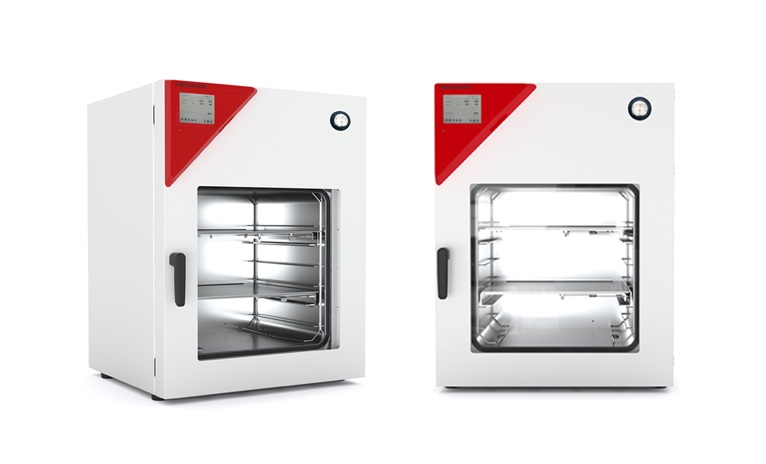

BINDER Vacuum Drying Oven VDL series
Vacuum drying chambers for flammable solvents VDL-56
- Fast, gentle drying
- Direct heat transfer through large thermal conducting plates
- Safe work thanks to proven safety concept and ATEX-certified interior
- Also option of modular complete system with vacuum pump and pump chamber
IMPORTANT FEATURES
- Temperature range: +9°C above ambient temperature to +110 °C
- ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
- Intuitive touchscreen controller with graphical pressure and temperature display
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Pressure control device for heating activated from < 100 mbar
- 2 aluminum expansion racks, can be custom-positioned
- Universal connection for ventilation with ambient air or inert gas
- Universal access port DN 16 – for the introduction of external measuring devices
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Computer interface: Ethernet
OPTIONAL EQUIPMENT
- Expansion racks – Choice of aluminum or stainless steel racks depending on the application requirements
- Analogue output for temperature and pressure signals – for external monitoring and evaluation of the process parameters, integration into inhouse systems is possible
- Universal ventilation – Selection of different ventilation by air or inert gas
- Universal access port DN 40 – for the introduction of external measuring devices
- Multi Management Software APT-COM – Manage, record and document device parameters
Data sheet VDL56 ⇓
Also check, VDL-56 | 200…230 V 1~ 50/60 Hz -8,0 A | Article no. 9630-0010
