BINDER Constant climate chamber with a large temperature / humidity range combined with light module (without light-dose control) or ICH-LQC (with light-dose control)

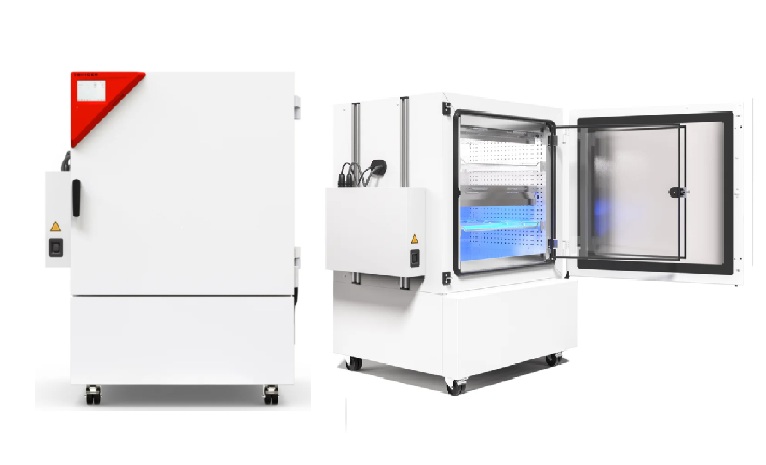

KB PRO 260 with ICH light module
The ICH light modules are available with or without light-dose control (LQC) and in two sizes. They can be combined with climate chambers from the KBF and KBF PRO series in sizes 260, 470, and 720. For ICH photostability tests without humidity, the light modules can be combined with units from the KB PRO series.
Scope of delivery for ICH light modules:
- VIS illumination cassette
- UVA illumination cassette
- For the ICH-LQC variant, two additional light sensors (VIS and UVA) for light-dose control
- Supply unit with ballasts / power supply units
- Cabling
Controller functions:
- The ICH light system is connected to the unit controller via data cables
- Time-segment programming for lighting control via unit controller
- Light-dose control via unit controller
Important characteristics
- Temperature range: +5 °C bis +60 °C
- Proven APT.line ™ preheating chamber technology
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-290 refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
Data sheet KBF-KBF PRO with ICH Light Module ⇓
